Quick Details

  • Application: Laser Engraving
  • Condition: New
  • Laser Type: CO2
  • Engraving Area: 1300*900mm
  • Engraving Speed: 0-60000mm/min(depends on material)
  • CNC or Not: Yes
  • Cooling Mode: Water Cooling
  • Applicable Material: Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
  • Graphic Format Supported: AI, BMP, DST, DXF, PLT
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: SENFENG
  • Model Number: SF1390E
  • Dimension(L*W*H): 2150mm*1460mm*1110mm
  • Certification: CE, ISO, SGS, UL
  • After-sales Service Provided: Engineers available to service machinery overseas
  • driving motor: stepper
  • working speed: 0-1000mm/s
  • working platform: honeycomb/blade
  • laser power: 60W 80W 100W
  • resetting position accuracy: 0.05mm
  • optional components: double laser heads
  • color: blue
  • Software Supported: Photoshop , CorelDraw , AutoCAD
  • Graphic format supported: BMP , PLT , DST , AI , DXF
  • resolution rate: <0.05mm

Packaging & Delivery

Packaging Details wooden box
Delivery Time 5 working days

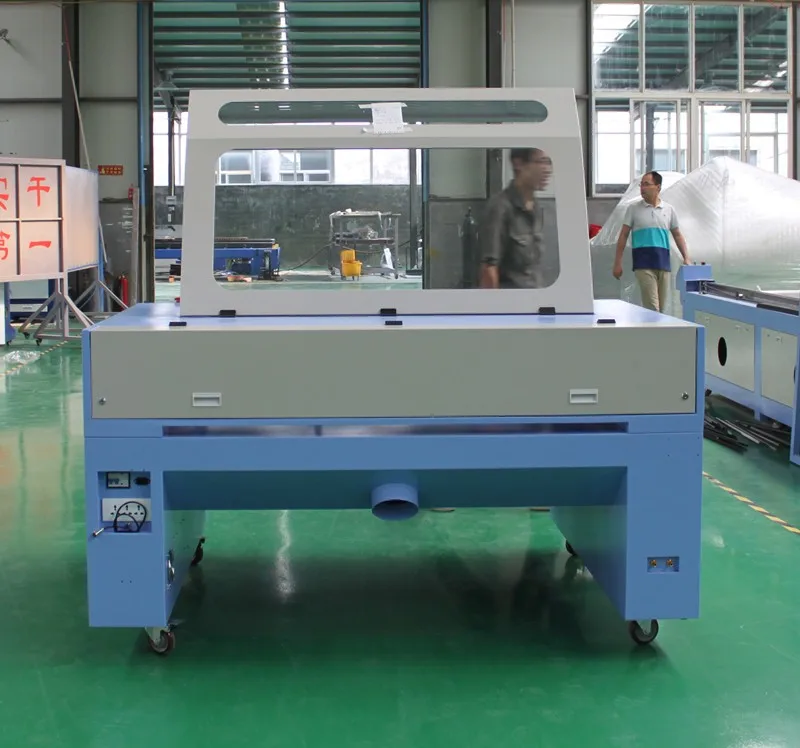

 1390E 80W Fabric Laser Cutting Machine Suppliers
Product Description

Technical-parameters:



Name:

SF1390E

Processing area

1300mm*900mm

Laser power

100W or 130W

Laser type:

Co2 glass laser tube

Software:

Laser cut 5.3

Dimension:

1970*1480*1150mm

Engraving speed

1-6000mm/min

Cutting speed

1-1000mm/min

Cutting thickness

0-20mm ( determined by materials)

Resolution ratio

≤0.0125mm

Position system:

Red dot

Interface:

USB

Minimum shaping character

letter 0.5mm, Chinese 0.5 mm

Support graphic format

DST, PLT, BMP, DXF

Gross power

1000W

Driving mode:

DC0.8A 24V stepper motor

Cooling mode:

Circulation water cooling

Working voltage:

AC220V/50HZ or 110V/60HZ or depend on customer

Operating temperature

0-45C

Operating humidity:

5-95%

Packing:

wooden box

Guarantee time:

1 year, laser tube 3 months

Option:

Rotary attachment for column materials

Operation:

Video to tell customer how to operate the machine




Applicable Industry

Applicable materials:

Non-metal materials such as acrylic, double color board, Plexiglas,Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.



Applicable industries:

Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo

and wooden product, garment and leather, embroidery, decoration and upholster industry.

Application show;



Packaging & Shipping

Our Services

Company Information

 Jinan SENFENG Technology Co., Ltd is established in 2004, has been the manufacturer of laser equipment for 14 years.It is located in Jinan Innovation Zone,Shandong Province.SENFENG now has over 200 employees,an annual sales figure that exceeds USD1500,0000,The laser machines are sold well in international markets such as European Union,America,Middle East,South

Asia,Southeast Asia,Russia,Aouth America,etc.

factory



certification;



in the exhibition:



FAQ



1 What are the consumable parts?

Laser machine is a high-tech device. It's not necessary to change all parts.

You only have to change Laser Tube, Focusing Lens and Reflective Mirror usually.

As for life time, it's up to you job from half an year to 3 years for Laser Tube

while lens and mirror is seldom to change with good quality and maintenance.

2 What’s the maintenance of the machine?

1. About laser tube,when you do not use the machine, please let the water out from the output light side.

2. About water chiller, when you put water into it, please keep water clean, after long time work,

it’s better to change the water.
